Wine Butterfly Valve
Wine Butterfly Valve
Sanitary Fittings

Our Wine Butterfly Valve is a type of sanitary valve specifically designed for use in the wine industry, to regulate, isolate, or control the flow of wine in processing systems.  The valve features a circular disc that rotates on a rotating shaft to adjust the flow.

Made from food-grade stainless steel (SS304, SS316, or SS316L), wine butterfly valves have smooth, crevice-free surfaces to prevent bacterial growth and facilitate easy cleaning.  The seals are typically made from EPDM, silicone, or Viton, providing excellent compatibility with wine.

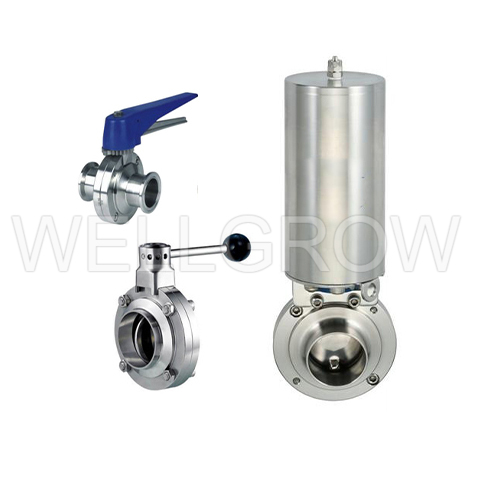

Our wine butterfly valves come in manual and automated versions.  Manual valves are operated by a handle (4 position pull handle or 12 position gripper handle), while automated valves use pneumatic actuators for remote control.  Tri-clamp connections allow easy installation and removal for cleaning, while weld ends are used for permanent installations.

Features：
  1. Connection：Clamp, butt-weld, male part
  2. Pressure：1” ~ 4” 145PSI at 68°F
  3. Temperature Range：-15°F to 200°F ( -10°C to 95°C )
Materials：
Body：304, 316 and 316L
Options：
  1. Handle：12 position gripper handle and 4 position pull handle
  2. Actuator：5.5 Bar air to spring, full open and close
  • BFYW-W
    Wine Butterfly Valve Weld / Weld End Wine Butterfly Valve
    SIZE ØA ØB ØE H L
    DN40/43 40 43 90 37 61.0
    DN50/53 50 53 105 40 64.3
    DN60/63 60 63 112 40 74.3
    DN70/73 70 73 125 41 77.6
    DN80/83 80 83 137 40 84.8
    DN100/103 100 103 157 44 101.6
  • BFYWM-W
    Wine Butterfly Valve Weld / Male End Wine Butterfly Valve
    SIZE ØA ØB C ØD H1 H2 L
    DN40/43 40 43 M55x3 90 37 37 61.0
    DN50/53 50 53 M67x3 105 40 40 64.3
    DN60/63 60 63 M79x3.5 112 40 40 74.3
    DN70/73 70 73 M90x3.5 125 41 41 77.6
    DN80/83 80 83 M102x4 137 40 40 84.8
    DN100/103 100 103 M125x4 157 44 45 101.6
  • BFYWF-W
    Wine Butterfly Valve Weld / Flange End Wine Butterfly Valve
    SIZE ØA ØB C ØD H1 H2 L
    DN40/43 40 100 M55x3 90 45 37 61.0
    DN50/53 50 100 M67x3 105 48 40 64.3
    DN60/63 60 120 M79x3.5 112 50 40 74.3
    DN70/73 70 120 M90x3.5 125 51 41 77.6
    DN80/83 80 140 M102x4 137 50 40 84.3
    DN100/103 100 140 M125x4 157 55 44 101.6
