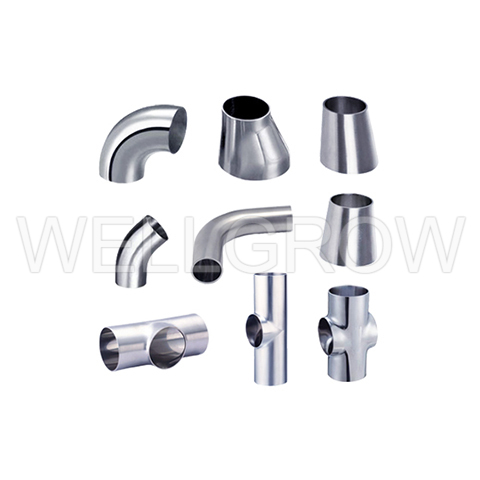

SMS Weld Fittings
Stainless Sanitary Fittings
Material： 304, 316L
-
2KS-S45° Long Elbow
SIZE ØA Thickness L DN25 25 1.25 1.50 42.33 DN38 38 1.25 1.50 48.72 DN50 51 1.25 1.50 58.15 DN63 63.5 1.50 1.50 75.30 DN76 76.1 1.60 2.00 79.37 DN100 101.6
104.02.00 2.00 85.54 -
2WC-S90° Short Elbow
SIZE ØA Thickness L DN25 25 1.25 1.50 37.5 DN38 38 1.25 1.50 57.0 DN50 51 1.25 1.50 76.5 DN63 63.5 1.50 1.50 95.3 DN76 76.1 1.60 2.00 114.2 DN100 101.6
104.02.00 2.00 152.1 -
2S-S90° Long Elbow
SIZE ØA Thickness L DN25 25 1.25 1.50 55 DN38 38 1.25 1.50 70 DN50 51 1.25 1.50 82 DN63 63.5 1.50 1.50 105 DN76 76.1 1.60 2.00 110 DN100 101.6
104.02.00 2.00 150 -
2S3D-S90° Long 3D Elbow
SIZE ØA Thickness L DN25 25 1.2 115 DN38 38 1.2 138 DN40 40 1.5 170 DN50 51 1.2 180 DN63 63.5 1.5 230 DN76 76.1 1.6 250 -
7W-STee with Straight End
SIZE ØA Thickness L1 L DN25 25 1.25 1.50 55 110 DN38 38 1.25 1.50 70 140 DN50 51 1.25 1.50 82 164 DN63 63.5 1.50 1.50 105 210 DN76 76.1 1.60 2.00 110 220 DN100 104 2.00 2.00 150 300 -
7WS-STee without Straight End
SIZE ØA Thickness L1 L DN25 25 1.25 1.50 14.0 110 DN38 38 1.25 1.50 21.0 140 DN50 51 1.25 1.50 28.5 164 DN63 63.5 1.50 1.50 36.0 210 DN76 76.1 1.60 2.00 43.0 220 DN100 104 2.00 2.00 58.0 300 -
9WS-SCross with Straight End
SIZE ØA Thickness L1 L DN25 25 1.25 1.50 14.0 110 DN38 38 1.25 1.50 21.0 140 DN50 51 1.25 1.50 28.5 164 DN63 63.5 1.50 1.50 36.0 210 DN76 76.1 1.60 2.00 43.0 220 DN100 104 2.00 2.00 58.0 300 -
31W-SConcentric Reducer
DN ØA T ØB T L 38x25 38 1.25 25 1.25 39 50x25 51 1.25 25 1.25 57 50x38 51 1.25 38 1.25 39 63x25 63.5 1.5 25 1.25 74 63x38 63.5 1.5 38 1.25 57 63x50 63.5 1.5 51 1.25 39 76x25 76.1 1.6 25 1.25 92 76x38 76.1 1.6 38 1.25 74 76x50 76.1 1.6 51 1.25 57 76x63 76.1 1.6 63.5 1.50 39 100x50 104 2.0 51 1.25 95 100x63 104 2.0 63.5 1.50 78 100x76 104 2.0 76.1 1.60 60 -
32W-SEccentric Reducer
DN ØA T ØB T L 38x25 38 1.25 25 1.25 46 50x25 51 1.25 25 1.25 68 50x38 51 1.25 38 1.25 47 63x25 63.5 1.50 25 1.25 92 63x38 63.5 1.50 38 1.25 70 63x50 63.5 1.50 51 1.25 44 76x25 76.1 1.60 25 1.25 76x38 76.1 1.60 38 1.25 92 76x50 76.1 1.60 51 1.25 68 76x63 76.1 1.60 63.5 1.50 47 100x50 104 2.0 51 1.25 117 100x63 104 2.0 63.5 1.50 94 100x76 104 2.0 76.1 1.60 74 -
7RWS-SReducing Tee without Straight End
DN ØA ØB Thickness L1 L 38x25 38.0 25.0 1.25 1.5 21.0 140 50x25 51.0 25.0 1.25 1.5 29.0 164 50x38 51.0 38.0 1.25 1.5 29.0 164 63x25 63.5 25.0 1.5 1.5 34.5 210 63x38 63.5 38.0 1.5 1.5 35.0 210 63x50 63.5 51.0 1.5 1.5 36.0 210 76x25 76.1 25.0 1.6 2.0 41.0 220 76x38 76.1 38.0 1.6 2.0 42.0 220 76x50 76.1 51.0 1.6 2.0 43.0 220 76x63 76.1 63.5 1.6 2.0 43.0 220 100x25 104 25.0 2.0 2.0 56.0 300 100x38 104 38.0 2.0 2.0 56.0 300 100x50 104 51.0 2.0 2.0 57.0 300 100x63 104 63.5 2.0 2.0 58.0 300 100x76 104 76.1 2.0 2.0 58.0 300
