Our Sanitary Filter, also known as the sanitary strainer, is designed to effectively capture solid particles from liquid flows in hygienic processing systems.  The filter ensures the protection of downstream equipment, such as pumps and valves, by preventing debris and particulate matter from causing damage or clogging.

We offer various types of sanitary filters to meet different needs.  Constructed from high-quality stainless steel, it offers exceptional resistance to corrosion and is easy to clean, meeting stringent sanitary standards.

Features：
  1. Connection type：Clamp, Weld, Male or Female End.
  2. Mesh：20 ~ 400
  3. Aperture Size：1mm ~ 10mm
  4. P.D. Press：0.05Mpa ~ 0.2Mpa
Materials：
SUS304, 316, 316L available
  • FI
    Inline Straight Filter
    SIZE ØA ØB ØC L
    1” 22.2 50.5 101.6 380
    1-1/2” 34.8 50.5 101.6 380
    2” 47.5 64.0 101.6 380
    2-1/2” 60.2 77.5 101.6 450
    3” 72.9 91.0 101.6 550
  • FA
    Angle Side Outlet Filter
    SIZE ØA ØB C L1 L2
    1” 22.1 50.5 104.8 310 110
    1-1/2” 34.8 50.5 104.8 310 110
    2” 47.5 64.0 114.3 310 110
    2-1/2” 60.2 77.5 108.0 410 110
    3” 72.9 91.0 108.0 490 110

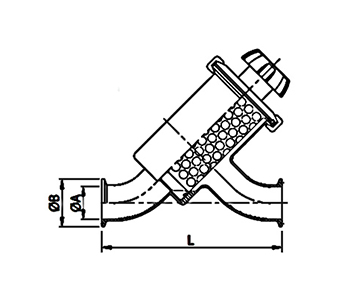

  • FY
    Filter Y-Type
    SIZE ØA ØB L
    1” 22.2 50.5 155
    1-1/2” 34.8 50.5 192
    2” 47.5 64.0 208
    2-1/2” 60.2 77.5 252
    3” 72.9 91.0 300
  • F45
    Filter Y-Type
    SIZE ØA ØB L L1
    1" 25.4 50.5 145 95
    1-1/4” 31.8 50.5 165 110
    1-1/2" 38.1 50.5 180 120
    2" 50.8 64.0 220 140
    2-1/2" 63.5 77.5 280 175
    3" 76.2 91.0 350 195
    4" 101.6 119.0 500 260
  • FS
    Filter S-Type
