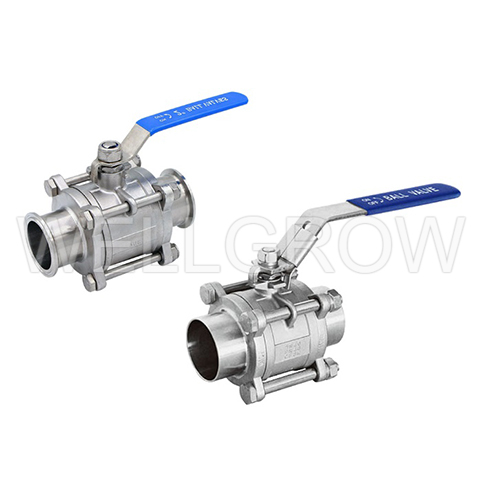

Our Sanitary 3-Piece Ball Valve without mounting pad is a specialized valve designed for sanitary applications, offering high-quality performance in industries that require strict hygiene standards.  This is our most economical model of sanitary ball valves because of no mounting pad.

Features：
  1. Connection type：Clamp end and Weld end
  2. Investment casting
  3. For food and general chemical service application
  4. Working Pressure：1/2” ~ 1-1/2” 1000PSI, 2” ~ 4” 800PSI
  5. 100% air tested under water at 100PSI, open and closed positions.
  6. Hydrostatic test pressure：
    Body：W.P. 1000PSI
    Tube end：W.P. 200PSI
  7. Teflon encapsulated seats maintain sanitary environment.
  8. Blow-out proof stem design.
Options：
  1. Locking device is available if requested.
  2. Cavity filled and non-cavity filled available.

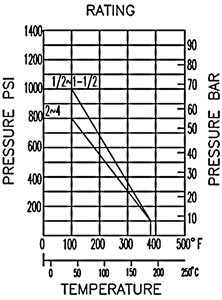

Pressure-Temperature
Material List
NO. PART NAME MATERIAL
1 BODY ASTM CF8 / CF8M / CF3M
2 CAP ASTM CF8 / CF8M / CF3M
3 BALL ASTM CF8 / CF8M / CF3M
4 SEAT PTFE / TFM1600
5 GASKET PTFE
6 THRUST WASHER PTFE
7 STEM PACKING PTFE
8 GLAND NUT AISI304
9 HANDLE WASHER AISI304
10 HANDLE NUT AISI304
11 STEM AISI316
12 BOLT WASHER AISI304
13 NUT AISI304
14 BOLT AISI304
15 HANDLE AISI304
16 HANDLE SLEEVE PLASTIC

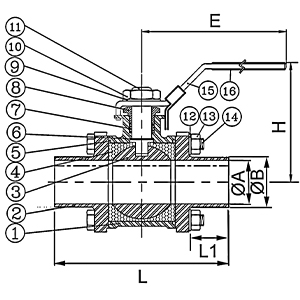

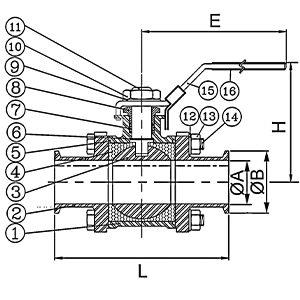

  • VBM3H
    3 Piece Ball Valve Clamp End
    SIZE ØA ØB L±1.0 H±3.0 E±3.0 TORQUE
    INCH / LBS
    DN INCH
    15 1/2” 9.5 25.4 89 52 106 110
    20 3/4” 15.9 25.4 101 55 106 130
    25 1” 22.2 50.4 114 70 135 170
    32 1-1/4” 28.5 50.4 124 79 135 230
    40 1-1/2” 35.0 50.4 140 89 182 280
    50 2” 47.6 63.6 156 89 182 480
    65 2-1/2’ 60.2 77.5 197 135 263 650
    80 3” 73.0 90.8 229 145 263 1150
    100 4” 97.4 118.5 241 184 285 1400
  • VBM3W
    3 Piece Ball Valve Weld End
    SIZE ØA ØB L±1.0 L1±1.0 H±3.0 E±3.0 TORQUE
    INCH / LBS
    DN INCH
    15 1/2” 9.5 12.7 89 18 52 106 110
    20 3/4” 15.9 19.1 101 21 55 106 130
    25 1” 22.2 25.4 114 25 70 135 170
    32 1-1/4” 28.5 31.8 124 28 79 135 230
    40 1-1/2” 35.0 38.1 140 28 89 182 280
    50 2” 47.6 50.8 156 25 89 182 480
    65 2-1/2’ 60.2 63.5 197 35 135 263 650
    80 3” 73.0 76.2 229 43 145 263 1150
    100 4” 97.4 101.6 241 37 184 285 1400
  • VBM3WL
    3 Piece Ball Valve Long Weld End
    SIZE ØA ØB L±1.0 L1±1.0 H±3.0 E±3.0 TORQUE
    INCH / LBS
    DN INCH
    15 1/2” 9.5 12.7 137.0 42.0 52 106 110
    20 3/4” 15.9 19.1 147.0 44.0 55 106 130
    25 1” 22.2 25.4 168.0 52.0 70 135 170
    40 1-1/2” 35.0 38.1 186.0 51.0 89 182 280
    50 2” 47.6 50.8 223.0 58.5 89 182 480
    65 2-1/2’ 60.2 63.5 250.4 61.0 135 263 650
    80 3” 73.0 76.2 302.0 79.0 145 263 1150
    100 4” 97.4 101.6 317.5 75.0 184 285 1400
