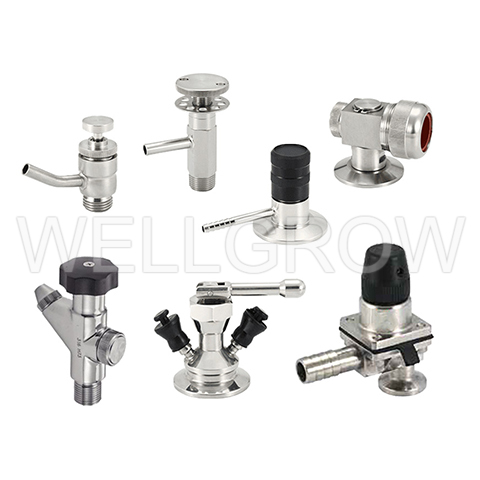

Our Sample Cock Valve is a compact, manually operated sanitary valve designed for drawing small fluid samples from tanks or pipelines without interrupting the main process. Commonly used in the food, beverage, and pharmaceutical industries, it enables easy and controlled sampling for quality checks, lab testing, or process monitoring.
The valves are typically made of stainless steel 304, 316, or 316L, with connection options including tri-clamp, threaded, flanged, or cap ends to suit different systems. It usually comes with EPDM, Silicone, or Viton seal to prevent leaks and ensure hygienic or safe operation.
UV | Upper Valve |
LV | Lever Valve |
TV | Test Valve |
SCV1 | Sample Cock Valve |
SCV2 | Sample Cock Valve |
SCV3 | Sample Cock Valve |
SCV4 | Sample Cock Valve |
SCV5 | Sample Cock Valve |
SCV6 | Sample Cock Valve |
SCV7 | Sample Cock Valve |
SCV8 | Sample Cock Valve |
SCV9 | Sample Cock Valve |
SDV1 | Diaphragm Sample Valve |
SDV2 | Diaphragm Sample Valve |

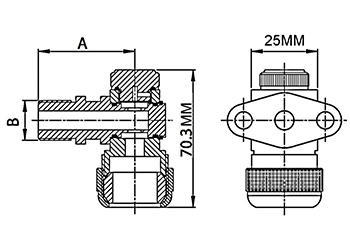

Connection End | A | B |
---|---|---|
16AMP | 51.0 | Ø50.5 |
Ferrule | 66.4 | Ø50.5 |
Male | 51.0 | 1/2”-PF |
Flange | 52.6 | 60x29 |

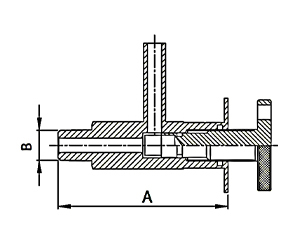

Connection End | A | B |
---|---|---|
16AMP | 81.8 | Ø50.5 |
Ferrule | 95.2 | Ø50.5 |
Male | 109.0 | 1/2”-PF |
Flange | 81.5 | 60x29 |

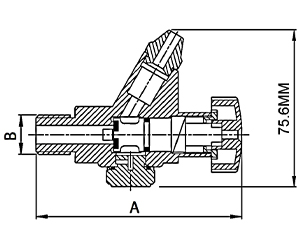

Connection End | A | B |
---|---|---|
16AMP | 81.80 | Ø50.5 |
Ferrule | 95.33 | Ø50.5 |
Male | 109.00 | 1/2”-PF |
Flange | 81.50 | 60x29 |
Connection End | A | B |
---|---|---|
16AMP | 66.4 | Ø50.5 |
Ferrule | 79.9 | Ø50.5 |
Male | 75.0 | 1/4”NPT 3/8”NPT 1/2”NPT |
Flange | 81.5 | 60x29 |
Connection End | A | B |
---|---|---|
16AMP | 82.0 | Ø50.5 Ø64.0 |
Ferrule | 90.6 | Ø25.0 |
Male | 91.9 | 1/4”NPT 3/8”NPT 1/2”NPT |

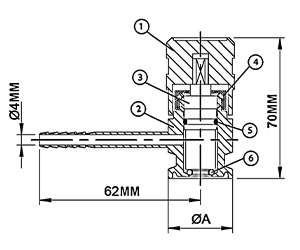

No. | Name | Material |
---|---|---|
1 | Rotating Nut | POM |
2 | Body | SUS304 / 316 (L) |
3 | Flow Support | SUS304 / 316 (L) |
4 | Locknut | SUS304 / 316 (L) |
5 | O-Ring | EPDM |
6 | O-Ring | EPDM |

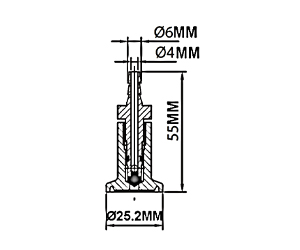

Size | ØA |
---|---|
1/2” | 25.2 |
1” | 50.5 |
