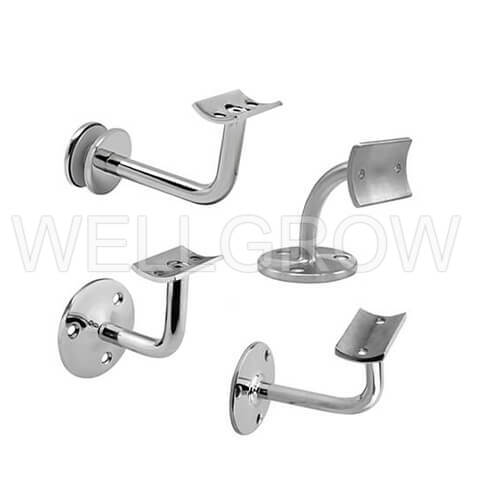

Handrail Brackets
Handrail Fittings
Material： Stainless Steel 304, 316 (ASTM A351 CF8,
CF8M)
Connection Type： Flush joint
Surface Finish： Satin finish, 180 grit polish, 320
grit polish, 400 grit polish, 600 grit polish (mirror finish)
Wall Thickness： 1.5mm, 2.0mm
Size： 1” ~ 3”
-

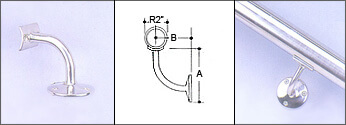

Handrail Bracket Radiused
Model No. R A B 1528A 1-1/2" 3-3/4" 2-1/2" 2028A 2" 3-3/4" 2-1/2" -
Handrail Bracket Flat Top
Model No. B A 2029A 2-1/2" 2-1/2" -

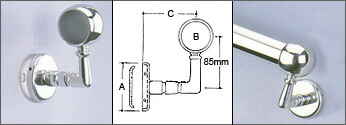

Handrail Bracket Ball Center
Model No. B A C 1233A 1-1/4" 65mm 65mm 1533A 1-1/2" 76mm 70mm 2033A 2" 76mm 70mm -

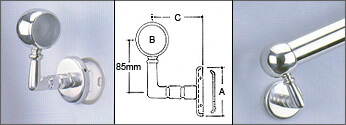

Handrail Bracket Ball End Cap
Model No. B A C 1234A 1-1/4" 65mm 65mm 1534A 1-1/2" 76mm 70mm 2034A 2" 76mm 70mm -

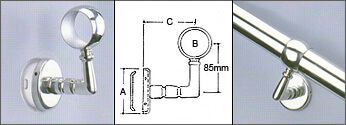

Handrail Bracket Ball End Cap
Model No. B A C 1235A 1-1/4" 65mm 65mm 1535A 1-1/2" 76mm 70mm 2035A 2" 76mm 70mm
