A Gate Valve is a type of industrial valve used in piping systems to control the flow of fluids in pipelines, primarily for on/off applications.  It is designed to raise or lower a gate-like disc to block or allow fluid flow.  When the gate is fully lifted, it creates a straight-through path, minimizing pressure drop and maximizing flow.

Our gate valves are primarily valued for their reliable full shutoff capability and minimal flow restriction when fully open.  They are available in a variety of pressure models, such as 600WOG for threaded end connections, and 150LB, 300LB, or PN16 for flanged end connections.  Constructed from stainless steel 316 (ASTM A351 Gr CF8M) or carbon steel ASTM A216 Gr. WCB, our valves offer excellent corrosion resistance, high-temperature resistance, durability, and high tensile strength.

1. Pressure: 600WOG for threaded end
   150LB, 300LB, PN16, 10K, 20K for flanged end
2. Temperature: 350 deg. F
3. 100% tested air - under water at 100 PSI (6 Bar), open & close position
4. Inside screw and screwed bonnet, wedge disc, integral seat, non-rising stem for screwed end

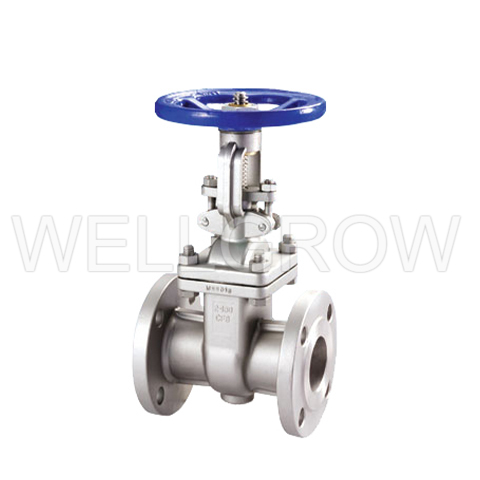

5. Bolted bonnet, outside screw and yoke, rising stem for flanged end
6. Handwheel & gear operator
