Flush In-Line Joiners
Flush In-Line Joiners
Handrail Fittings

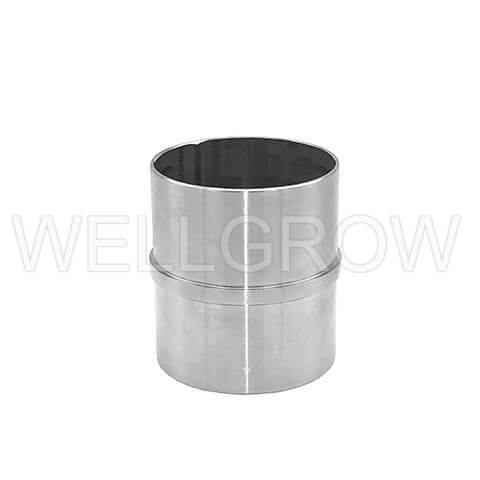

Stainless Steel Flush In-line Joiners are precision-engineered fittings used to connect two straight sections of railing in handrail systems.  Designed for a smooth, seamless fit, they create a clean, uninterrupted transition while maintaining the strength and stability of the overall system.

Crafted from high-quality 304 or 316 stainless steel, these joiners provide excellent corrosion resistance, making them ideal for both indoor and outdoor applications.  Available in mirror, brushed, and satin finishes, our stainless steel flush in-line joiners deliver a strong, long-lasting connection while enhancing the visual appeal of any handrail installation.

Material: Stainless Steel 304, 316 (ASTM A351 CF8, CF8M)
Connection Type: Flush joint
Surface Finish: Mirror Finish, Brushed Finish, or Satin Finish
Wall Thickness: 1.5mm, 2.0mm
Size: 1” ~ 3”
Available Parts:

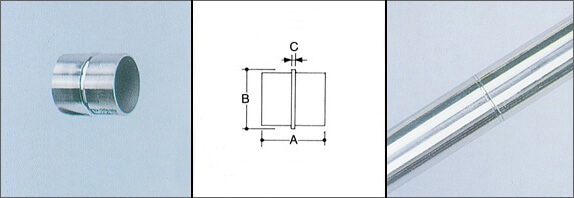

  • Flush In-line Joiner Flush I-Line Joiners
    Model No. B A C
    1504E 1-1/2" 2" 1/8"
    2004E 2" 2-1/8" 1/8"
    2504E 2-1/2" 2-5/8" 1/8"
    3004E 3" 2-5/8" 1/8"
