BPE Diaphragm Valve
BPE Diaphragm Valve
Sanitary Fittings

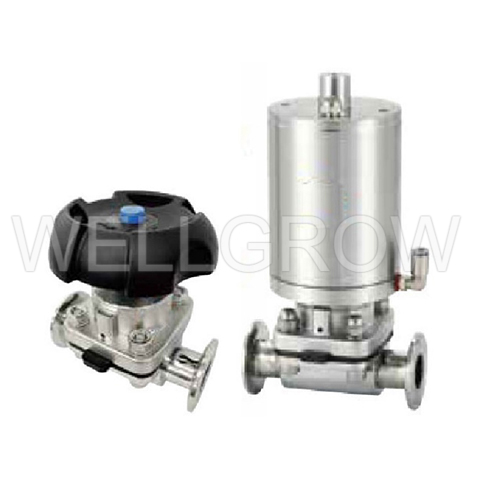

Our BPE Diaphragm Valve is a type of sanitary valve manufactured in accordance with ASME BPE (Bioprocessing Equipment) standards, ensuring hygienic processing through smooth internal surfaces, precise dimensional tolerances, and full material traceability.  It features tri-clamp or welding connections, and is operated by pneumatic or manual control modes.

The valves are assembled with EPDM or PTFE+EPDM diaphragms, and our PTFE+EPDM diaphragm seals are interchangeable with GEMU diaphragm seals.  With mirror-polished internal surfaces (ID Ra ≤ 0.5μm), it ensures easy cleaning and minimizes the risk of contamination.

Features：
  1. Control mode：Pneumatic type and Manual Type
  2. Connection type：Clamp or Weld end.
  3. Operation：Normal Open & Normal Close design
  4. Working temperature：Assembling Diaphragm:
    EPDM ( -40℃ ~ 110℃ ),
    PTFE / EPDM ( -10℃ ~ 150℃ )
  5. Working pressure: Max 10 Bar
  6. Surface: ID / OD Mirror Polished
    ID Ra ≦ 0.5um, OD Sand Blasted
Materials：
  • Body：Forged / 316L
  • Diaphragm：EPDM + PTFE / NC or NO
  • The seal of Diaphragm is exchangeable with GEMU

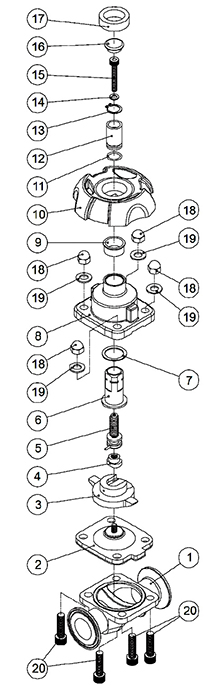

Parts List：
  1. Body：SUS316L
  2. Seal：EPDM + PTFE
  3. Seat：SUS304
  4. Screw：SUS304
  5. Blot：SUS304
  6. Bolt Sleeve：SUS304
  7. Seal：PTFE
  8. Bonnet：SUS304
  9. Sleeve：PEEK
  10. Handle wheel：EPDM + PTFE
  11. O-ring：NBR
  12. Positioning Index：MC (Blue)
  13. Circlip：SUS304
  14. Washer：SUS304
  15. Screw：SUS304
  16. Cover：MC (Blue)
  17. Cap：EPDM + PTFE
  18. Nut：SUS304
  19. Washer：SUS304
  20. Screw：SUS304
  • BPE2DW
    BPE 2-Way Diaphragm Valve Weld End BPE Diaphragm Valve
    SIZE ØA ØB ØD L H1 H2
    1/2” 9.4 12.7 60 124.0 74 83
    3/4” 15.75 19.05 60 135.0 74 83
    1” 22.1 25.4 95 141.2 100 113
    1-1/2” 34.8 38.1 95 168.4 119 134
    2” 47.5 50.8 118 190.5 135 153
  • BPE2DC
    BPE 2-Way Diaphragm Valve Clamp End BPE Diaphragm Valve
    SIZE ØA ØB ØC ØD L H1 H2
    1/2” 9.4 12.7 25 60 88.9 74 83
    3/4” 15.75 19.05 25 60 101.6 74 83
    1” 22.1 25.4 25 95 114.3 100 113
    50.39
    1-1/2” 34.8 38.1 50.39 95 139.7 119 134
    2” 47.5 50.8 63.91 118 158.8 135 153
  • BPE2DW-A
    BPE Pneumatic 2-Way Diaphragm Valve Weld End BPE Diaphragm Valve
    SIZE ØA ØB ØD L H1 H2
    1/2” 9.4 12.7 60 124.0 122 131
    3/4” 15.75 19.05 60 135.0 122 131
    1” 22.1 25.4 95 141.2 212 225
    1-1/2” 34.8 38.1 95 168.4 217 232
    2” 47.5 50.8 118 190.5 315 333
  • BPE2DC-A
    BPE Pneumatic 2-Way Diaphragm Valve Clamp End BPE Diaphragm Valve
    SIZE ØA ØB ØC ØD L H1 H2
    1/2” 9.4 12.7 25 60 88.9 122 131
    3/4” 15.75 19.05 25 60 101.6 122 131
    1” 22.1 25.4 25 95 114.3 212
    217    		 225
    232
    50.39
    1-1/2” 34.8 38.1 50.39 95 139.7 315 333
    2” 47.5 50.8 63.91 118 158.8 135 153
