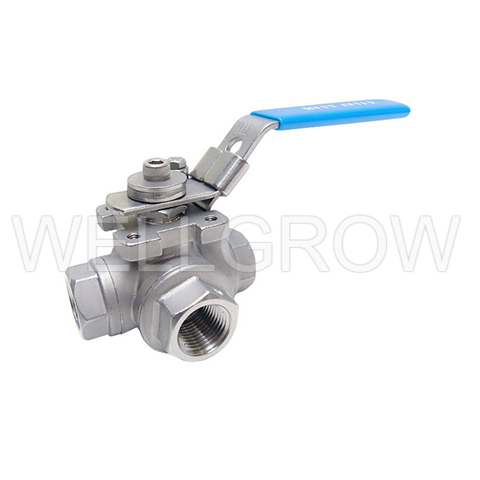

Our 3-Way Ball Valve is an industrial valve that uses threaded connections to connect to pipelines, allowing for easy installation and removal in plumbing and industrial applications. It is designed to use a spherical ball with a bore (hole) through it to control the flow of fluids through a pipeline by redirecting or mixing them in multiple directions. This design allows for instant on/off control and low-torque operation, and the ball's tight seal prevents leaks, even under high pressure.
We offer a variety of 3-way ball valves, available in both full port and standard port models. These valves come in T-port or L-port configurations and can be supplied with or without a mounting pad, as well as options for direct mounting. They are rated for 1000WOG, and are primarily made of stainless steel 316 (ASTM A351 Gr CF8M) or carbon steel ASTM A216 Gr. WCB, providing high strength, durability, and excellent corrosion resistance.
Our 3-way ball valves are known for their reliability, versatile flow control, efficient flow control, low pressure drop, minimal leakage, and easy maintenance.
Stainless Steel 316 (ASTM A351 CF8M)
Carbon Steel ASTM A216 WCB
- High quality investment casting body / caps
- Pressure & temperature rating : 1000WOG, 2000WOG / 450 deg. F
- ISO 5211 mounting pad or direct mounting
- Blow-out proof stem, adjustable stem packing
- Virgin (Pure) PTFE seats
- 100% tested air - under water at 100PSI (6 Bars) open & close position
- Design : ANSI B16.34, Testing & inspection : API 598
- Oval handle & Butterfly handle available
- Locking device available
- 15% or 25% Glassfibre Reinforced PTFE seat available
