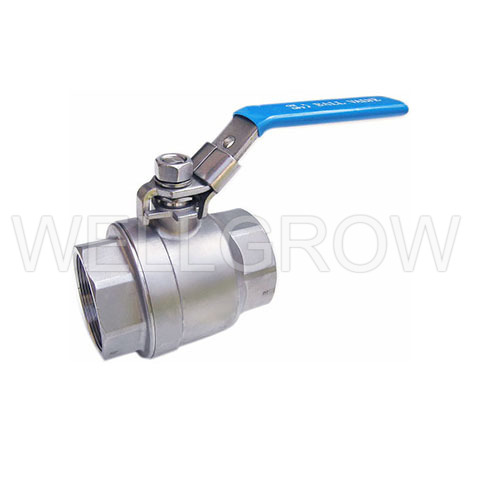

The 2-Piece Ball Valve is an industrial valve that uses threaded connections to connect to pipelines, allowing for easy installation and removal in plumbing and industrial applications.  It consists of two main parts, the body and the end cap, making it beneficial for maintenance and for a thorough cleaning of the ball, seat, and other internal parts by disassembling the valve.  The valve is commonly used to control the flow of fluids by rotating a spherical ball with a bore (hole) through it to either allow or block the flow.  This design allows for instant on/off control and low-torque operation, and the ball's tight seal prevents leaks, even under high pressure.

Our 2-piece ball valves are known for their reliability, versatility for various fluids, efficient flow control, low pressure drop, minimal leakage, and easy maintenance.  These ball valves are available in a variety of pressure models, such as 1000WOG, 1500/2000WOG, or 3000WOG, and are mainly made of stainless steel 316 (ASTM A351 Gr CF8M) or carbon steel ASTM A216 Gr. WCB, providing excellent corrosion resistance, high strength, and durability.  Each valve includes a blow-out proof stem and adjustable stem packing, ensuring the security and high performance.  Additionally, we have some models available with mounting pad and direct mounting options for actuators installation.

1. High quality investment casting body / caps
2. Pressure temperature rating : 1000WOG (PN63) / 450 deg. F
3. ISO 5211 mounting pad or direct mounting
4. Blow-out proof stem, adjustable stem packing
5. Virgin (Pure) PTFE seats
6. 100% tested air - under water at 100PSI (6 Bars) open & close position
7. Design : ANSI B16.34, Testing & inspection : API 598

1. Oval handle & Butterfly handle available
2. Locking device available
3. 15% or 25% Glassfibre Reinforced PTFE seat available
